Evaluation

■ Evaluate and analyze the device.

■ Based on the RTL provided by the customer, we will verify the mounting machine using the FPGA

In recent years, the functions and performance mounted on a single LSI are progressing toward higher performance and multi-functionalization due to process miniaturization
and development of design tools. Under such circumstances, high-level expertise and specialized equipment are required for evaluation and function confirmation of integrated circuits that develop.
At our company, we utilize our development experience over many years.
 We offer optimal solutions that meet customer’s needs, from proposal of evaluation method to construction of evaluation environment (board etc.).



Owned Evaluation Equipment List

Equipment Maker MPN
Specification

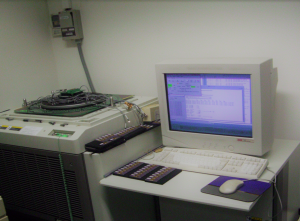

SOC Test System ADVANTEST T6533 Digital 31.25MHz 256ch + Analog Option
Digital Storage Oscilloscope Keysight DSOS604A 4ch 6GHz 20GSa/s 10-bits
Digital Oscilloscope Agilent 54845A 4ch 1.5GHz 8GSa/s
Digital Storage Oscilloscope Keysight DSOX1102A 2ch 70/100MHz 2GSa/s 8-bits
PXA Signal Analyzer Keysight N9030B

Frequency : 2Hz~50GHz                                Max. Bandwidth : 510MHz                                  Phase Noise : -146dBc/Hz

Waveform Generator Keysight 33612A 2ch max. 80MHz
Audio Analyzer Keysight U8903B 5Hz~1.5MHz  Residual Strain : -110dB
Spectrum Analyzer ADVANTEST R3361A

9kHz~2.6GHz                                                     Measurement Range : -130dBm~+25dBm Resolution : 30Hz~1MHz

Digital Multimeter Keysight 34470A

7.5 digit                                                     Voltage Range : 100mV~1000V                Current Range : 1uA~10A

Digital Electrometer ADVANTEST R8240 4.5 digit                                                   Voltage Range : 200mV~20V                Current Range : 200pA~20mA
Logic Analyzer ZEROPLUS LAP-C(322000) Clock : 100Hz~200MHz  Bandwidth : 75MHz     DC Range : -6V~+6V  Memory : 2Mx32ch
Source/Measure Unit Keysight B2912A Measurement Range :                                ±210V, ±3A(DC), ±10.5A(Pulse)                     Min. Resolution : 10fA/100nV
BIPOLAR Power Supply KIKUSUI PBZ80-5 Four-quadrant Operation Power Supply ±80V/±5A 400W max.
Programmable DC Source YOKOGAWA 7651 Voltage : 0~32V Current : 0~±120mA
Regulated DC Power Supply KENWOOD PW18-1.8Q 2 Outputs                                                 Output Voltage : 0~+18V/0~-18V             Output Current : 0~+1.8A/0~-1.8A
Regulated DC Power Supply KENWOOD PA36-2A 1 Output Voltage : 0~36V Current : 0~2A
Regulated DC Power Supply TEXIO PW18-1.8AQ 4 Outputs                                                     Output Voltage : 0~+18V/0~-18V/0~+8V/0~-6V  Output Current : 0~+1.8A/0~-1.8A/0~+2A/0~-1A
Regulated DC Power Supply TEXIO PW18-1.8AQ 4 Outputs                                                     Output Voltage : 0~+18V/0~-18V/0~+8V/0~-6V  Output Current : 0~+1.8A/0~-1.8A/0~+2A/0~-1A
